ARCAM / IO.BOT: Robotic camera system

Unlock a new level of creative freedom with the ARCAM / IO.BOT motion control robotic camera system, XD motion’s complete solution for creating a centralized and scalable robotic camera ecosystem. This seamlessly integrated system pairs the agility and reach of the 6-axis ARCAM robotic arm with the power of the IO.BOT software—a single, intuitive interface providing centralized control over your entire robotic fleet, from ARCAMs and PTZs to towers, tracks, and remote heads. Engineered for the evolving needs of broadcast, virtual production, and live events, ARCAM / IO.BOT empowers creators to capture extraordinary shots with unparalleled safety and efficiency.

The 6-axis ARCAM robotic arm provides full motion control and is designed to operate safely around people.

It is programmed to move in 3D within a virtual sphere, with operational diameters of 1.7 m (ARCAM 5), 2.5 m (ARCAM 10, ARCAM 15, ARCAM 30), or 3.5 m (ARCAM 20).

An optional dolly can support the ARCAM 10 and ARCAM 15 models upside down.

All models are particularly suited for dynamic shots, whether wide shots in movement or close-ups for Pan and Tilt, and can also be fixed.

If you want to gain space on the floor, hang the robot on a wall or ceiling.

This arm does not need any complex calibration and is fast to set up.

The ARCAM is Augmented Reality compatible for any actual 3D engine under FreeD protocol. XD motion provide all metadata for XYZ position, pan/tilt/roll angles, and zoom/focus positions.

The IO.BOT software is designed by and for end users to ensure functional and ergonomic satisfaction.

Save time and space by controlling all PTZs, ARCAMs Robots, and other remote heads robotics with IO.BOT single interface.

IO.BOT – One software to rule them all

Control all your ARCAMs and PTZs, including models from leading brands (Sony, Panasonic, Canon, OBSBOT, PTZ Optics, BirdDog).

IO.BOT software allows a single operator to control up to 16 robotic systems—PTZs, multiple towers (like X tower), ARCAMs, pan-and-tilt heads, dollies (like X dolly), tracks (like X track mini), and more.
Define unlimited trajectories.
Features an ergonomic interface, designed by and for end-users, and optimized for broadcast use.
Connects to any 3D Engines and is compatible with any Automation System.

PTZs

Control up to 16 PTZs simultaneously from the single IO.BOT software interface.
Supports PTZs from leading brands such as Sony, Panasonic, Canon, OBSBOT, PTZ Optics, and BirdDog.

3D ENGINES

Get all the robot’s information (XYZ position, pan/tilt/roll angles, zoom/focus) in real-time via FreeD protocol.
Compatible with any 3D engine for AR, XR, and VR applications.

Automation Systems

Connect your robotic & automation systems.
Compatible with any automation system.
Centralize control of your robotic camera systems from your existing control room setup.

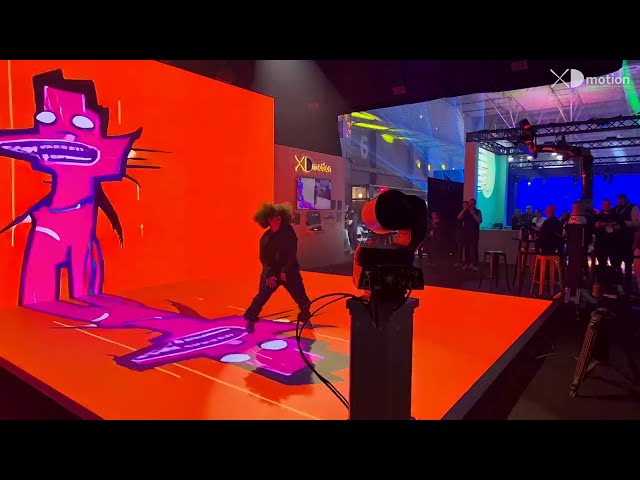

Beaconless Tracking

Automate camera movements with real-time, FREE-TAG tracking data by integrating IO.BOT with Naostage’s K SYSTEM through the optional X tracking / IOBOT—the world’s first AI-powered beaconless tracking solution for PTZs, robotics, and third-party AV systems (sound, lighting, video, media, etc.).

Built for your ecosystem

VR, AR, Unreal Engine, X-Reality Pro, K SYSTEM, Blacktrax, NDI, Ghostframe, HD, 4K UHD, 8K, HDR, 5G, IP Connectivity, VPN, CE

PTZs Supported

The ARCAM Series: Precision Robotics for Every Creative Vision

Discover the ARCAM series —a comprehensive family of 6-axis robotic camera arms, meticulously engineered for exceptional precision, fluid movement, and steadfast reliability. Designed to meet the diverse and evolving needs of content creators, the ARCAM line offers scalable solutions, from agile, lightweight arms to heavy-payload systems. Whether for live broadcast, intricate virtual productions, dynamic sporting events, or cinematic filmmaking, each ARCAM model integrates seamlessly with our intuitive IO.BOT software, providing sophisticated motion control to bring your most ambitious visual concepts to life. Explore the ARCAM models below to find the perfect fit for your production.

ARCAM 10: The Versatile Studio Workhorse

The ARCAM 10 offers an optimal balance of reach and a 10 kg payload capacity. A true studio workhorse, it consistently delivers the smooth and precise motion essential for a wide array of broadcast and studio applications.

Payload: 10 Kg / 22 lbs
Reach (Radius): 1300 mm / 51.2 In
Weight: 33.5 Kg / 73.9 lbs
Pan Range: 350 deg
Tilt Range: ± 45 deg
Max Speed: 1 m/sec
Min Speed: 0.01 deg/sec
Mounting: Sitting / Hanging / X tower / Optional Dolly (supports upside-down mounting)
Manual Operation: ARJOYSTICK Compatible
Output (Positional & Lens Values): Free-D Output via ARSYNC
Input Power: 110 – 230 VAC

Ideal for: Mid-sized studios, virtual production, news broadcast, corporate studios.

ARCAM 15: High-Speed Precision in Constrained Spaces

The ARCAM 15 is the ultimate solution for capturing high-octane action in environments where every inch counts. It delivers exceptional performance for dynamic on-set camera movements.

Payload: 15 Kg / 33.1 lbs
Reach (Radius): 1300 mm / 51.2 In
Weight: 40.7 kg / 89.7 lbs
Pan Range: 350 deg
Tilt Range: ± 45 deg
Max Speed: 1 m/sec
Min Speed: 0.01 deg/sec
Mounting: Sitting / Hanging / X tower / Optional Dolly (supports upside-down mounting)
Manual Operation: ARJOYSTICK Compatible
Output (Positional & Lens Values): Free-D Output via ARSYNC
Input Power: 110 – 230 VAC

Ideal for: Virtual production studios, sports broadcasting, events with limited space, and dynamic on-set camera movements.

ARCAM 20: Extended Reach, Heavy Payloads, Maximum Performance

Engineered for demanding productions, the ARCAM 20 offers an extended reach of 1.75m and a 20 kg payload capacity, handling heavier camera and lens configurations with precision and speed.

Payload: 20 Kg / 44,1 lbs
Reach (Radius): 1750 mm / 68.9 In
Weight: 64 kg / 141.1 lbs
Pan Range: 350 deg
Tilt Range: ± 45 deg
Max Speed: 1 m/sec
Min Speed: 0.01 deg/sec
Mounting: Sitting / Hanging / X tower
Manual Operation: ARJOYSTICK Compatible
Output (Positional & Lens Values): Free-D Output via ARSYNC
Input Power: 110 – 230 VAC

Ideal for: Larger broadcast studios, film sets, commercials with heavier cameras, productions requiring maximum reach.

ARCAM 30: The Heavy Payload Powerhouse with a Compact Design

The ARCAM 30 is built to handle the most demanding camera and lens packages up to 30 kg. This powerhouse delivers robust lifting capacity in a surprisingly compact design for its capability, ensuring unwavering precision.

Payload: 30 Kg / 66,1 lbs
Reach (Radius): 1300 mm / 51.18 In
Weight: 63,5 kg / 139.9 lbs
Pan Range: 350 deg
Tilt Range: ± 45 deg
Max Speed: 1 m/sec
Min Speed: 0.01 deg/sec
Mounting: Sitting / Hanging / X tower
Manual Operation: ARJOYSTICK Compatible
Output (Positional & Lens Values): Free-D Output via ARSYNC
Input Power: 110 – 230 VAC

Ideal for: Film production, high-end commercials, and studio applications needing exceptional lifting capacity.

ARCAM Series: Key Specification Comparison

	ARCAM 10	ARCAM 15	ARCAM 20	ARCAM 30
Payload	10 Kg 22 lbs	15 kg 33.1 lbs	20 Kg 44.1 lbs	30 kg 66.1 lbs
Reach (Radius)	1300 mm 51.2 In	1300 mm 51.2 in	1750 mm 68.9 In	1300 mm 51.2 in
Weight	33.5 Kg 73.9 lbs	40.7 kg 89.7 lbs	64 Kg 141.1 lbs	63.5 kg 139.9 lbs
Mounting Options	Sitting Hanging X tower X dolly	Sitting Hanging X tower X dolly	Sitting Hanging X tower	Sitting Hanging X tower
