GSS – Cineflex 512

  • GSS 512 on X fly 3D cablecam

The Cineflex 512 is an optimized stabilized platform option for smaller, broadcast payloads. With six axis of movement in an extremely small package, this gimbal only weighs 36 lbs (16.3 kg) without payload making it lightweight and versatile!

This mini gyro-stabilized head GSS complements our Pro and Pro+ versions. On the market, this is the sole head gyro – 6 axis stabilized market in low weight / height.

Intended for applications on light helicopters, we have adapted the GSS Cineflex on our Cablecam  X fly 3D and X fly 1D to provide extraordinary stability on our flying system. Output Meta data is available for special effects and motion control movements.

System Features

  • Advanced fiber optic gyro-stabilization
    • VectorSteering™ 6-axes of movement in a 5-axis gimbal
  • Stabilized look down (no gimbal lock) in a smaller, lighter package
  • Geo-pointing with moving map interface option
  • Continuous digital zoom through 10x (camera dependent)
  • Isolated electronics eliminates video noise
  • Fully upgradeable as gimbal, camera, and lens technologies evolve
  • No auxiliary junction unit required
  • Stabilized or steerable horizon with in-flight automatic calibration
  • No ITAR or EAR export restrictions
  • Ships as excess baggage (<70lbs/32kg per case)
  • MIL-STD-810F power filters with reverse polarity protection
  • Engineered/Manufactured to DO-160G standards – not certified
  • Platform designed for both standard and inverted use
  • Wireless capability option
  • Metadata outputs (lens, camera, & GPS functions)
  • Remote controlled optical filter system
  • Electro-mechanical gimbal stow mechanism
  • Compatible with existing air and ground mounts
  • Standard 1-year warranty and 24/7/365 customer service

System Specifications

Gimbal Performance
VectorSteering™ offers 6-axes of movement in a 5-axis gimbal – gyro-stabilized
Azimuth: 360°continuous
Elevation: 35° to -210° from horizontal
Roll: > +/- 90° (steerable/stabilized)
Gimbal slew rate: 0-130°/second (depending on gearbox)
Max operational airspeed: variable depending on gearbox

Interface
Control: RS-232, RS-422, or ethernet

Electrical
VIN: 18-33 VDC
Power: 15 amps max draw at 28 VDC

Dimensions
Gimbal width: 13.8 inches (351 mm)
Gimbal height: 17.7 inches (450 mm)
Snout length: 0-6 inches (0-152 mm)
Cable set length: 20 feet (standard set)

Weight
Platform: 36 lbs (16.3 kg) + payload
Hand Controller Unit: 7 lbs (3.2 kg)
Auxiliary Junction Unit: payload specific
Cable Set: 8 lbs (3.6 kg)

Environmental
Operating temperature: -4° to +122°F (-20° to +50°C) Sealed system for airborne/ground/marine applications

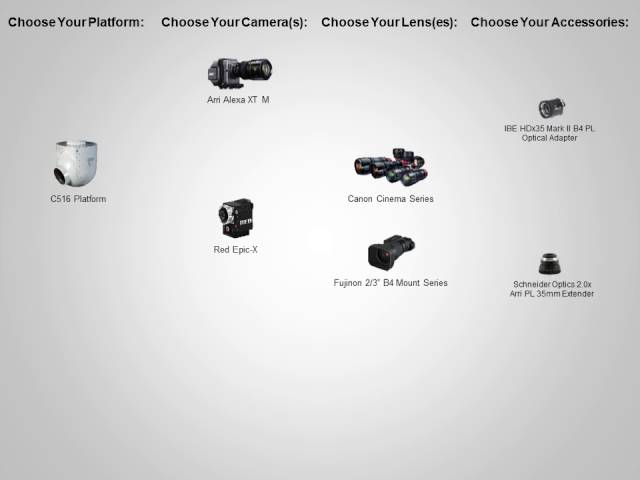

Camera/Lens Payload Options
Sony HDC-P1, HDC-P43 & HDC-P50
Ikegami HDL-F3000 Low-Light
Grass Valley LDX Compact HD/4K
Panasonic AK-UB300 4K

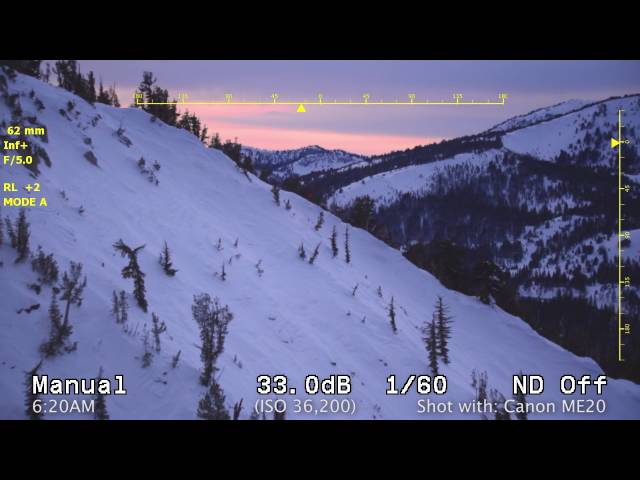

Canon ME20F-SH Low-light
NEC NC-H1200S
Other cameras available upon request

Interchangeable Lens Options
Canon HJ/CJ Series
Fujinon HA/4K Series
Other lenses available upon request

Helicopter/Airplane Mount Availability
AS 350/355
Bell 206/206L/407
Bell 505 EC-120
Robinson R44/R66
Cessna 172/206
Compatible with various other aircraft

Vehicle/Marine Mount Configurations
Arm Mounts Mitchell Mount
Various other mount types from many manufacturers

Specifications are subject to change.
